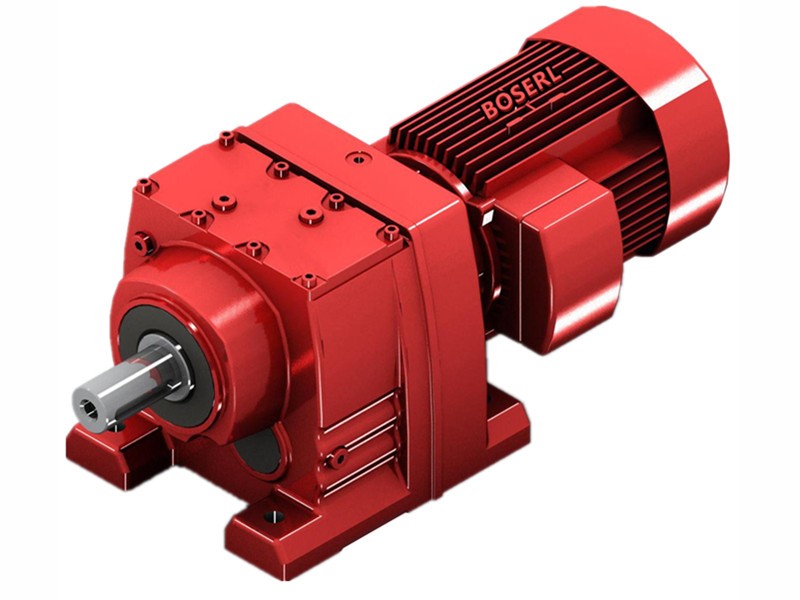

RF27DV71S4詳細信息
RF27DV71S4
訂購熱線：13360667204
關鍵詞：2.2KW立式電機減速器一體機_RF27DV71S4_RF27DRN71S4
RF27DV71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF27DV71S4 | 84.78 | 0.25KW | 15.0rpm | 156N.m | 15.5kg | 4100N | 0.85 |
| RF27DV71S4 | 74.11 | 0.25KW | 18.0rpm | 136N.m | 15.5kg | 4210N | 0.95 |
| RF27DV71S4 | 69.47 | 0.25KW | 19.0rpm | 128N.m | 15.5kg | 4240N | 1.00 |
| RF27DV71S4 | 61.30 | 0.25KW | 21.0rpm | 113N.m | 15.5kg | 4180N | 1.15 |
| RF27DV71S4 | 55.87 | 0.25KW | 23.0rpm | 103N.m | 15.5kg | 4090N | 1.25 |
| RF27DV71S4 | 48.17 | 0.25KW | 27.0rpm | 88N.m | 15.5kg | 3940N | 1.45 |
| RF27DV71S4 | 44.90 | 0.25KW | 29.0rpm | 82N.m | 15.5kg | 3870N | 1.60 |
| RF27DV71S4 | 39.25 | 0.25KW | 33.0rpm | 72N.m | 15.5kg | 3730N | 1.80 |
| RF27DV71S4 | 36.79 | 0.25KW | 35.0rpm | 68N.m | 15.5kg | 3660N | 1.90 |
| RF27DV71S4 | 32.47 | 0.25KW | 40.0rpm | 60N.m | 15.5kg | 3540N | 2.20 |
| RF27DV71S4 | 28.78 | 0.25KW | 45.0rpm | 53N.m | 15.5kg | 3420N | 2.50 |
| RF27DV71S4 | 24.47 | 0.25KW | 53.0rpm | 45N.m | 15.5kg | 3270N | 2.90 |
| RF27DV71S4 | 28.37 | 0.25KW | 46.0rpm | 52N.m | 15.5kg | 3410N | 2.50 |
| RF27DV71S4 | 26.09 | 0.25KW | 50.0rpm | 48N.m | 15.5kg | 3330N | 2.70 |
| RF27DV71S4 | 22.32 | 0.25KW | 58.0rpm | 41N.m | 15.5kg | 3180N | 3.20 |
| RF27DV71S4 | 19.35 | 0.25KW | 67.0rpm | 36N.m | 15.5kg | 3050N | 3.70 |
| RF27DV71S4 | 18.08 | 0.25KW | 72.0rpm | 33N.m | 15.5kg | 2990N | 3.90 |
| RF27DV71S4 | 15.63 | 0.25KW | 83.0rpm | 29N.m | 15.5kg | 2860N | 4.50 |
| RF27DV71S4 | 13.28 | 0.25KW | 98.0rpm | 24N.m | 15.5kg | 2730N | 5.30 |
| RF27DV71S4 | 11.86 | 0.25KW | 110rpm | 22N.m | 15.5kg | 2630N | 5.90 |
| RF27DV71S4 | 10.13 | 0.25KW | 128rpm | 19N.m | 15.5kg | 2510N | 6.60 |
| RF27DV71S4 | 9.41 | 0.25KW | 138rpm | 17N.m | 15.5kg | 2440N | 7.00 |
| RF27DV71S4 | 8.16 | 0.25KW | 159rpm | 15N.m | 15.5kg | 2330N | 7.70 |
| RF27DV71S4 | 7.63 | 0.25KW | 170rpm | 14N.m | 15.5kg | 2280N | 8.00 |
| RF27DV71S4 | 6.59 | 0.25KW | 197rpm | 12N.m | 15.5kg | 2180N | 8.80 |
| RF27DV71S4 | 5.60 | 0.25KW | 232rpm | 10N.m | 15.5kg | 2080N | 9.60 |
| RF27DV71S4 | 5.00 | 0.25KW | 260rpm | 9.2N.m | 15.5kg | 2000N | 10.0 |
| RF27DV71S4 | 4.27 | 0.25KW | 304rpm | 7.8N.m | 15.5kg | 1900N | 11.0 |
| RF27DV71S4 | 4.00 | 0.25KW | 325rpm | 7.3N.m | 15.5kg | 1870N | 12.0 |
| RF27DV71S4 | 3.37 | 0.25KW | 386rpm | 6.2N.m | 15.5kg | 1770N | 13.0 |
RF27DRN71S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| RF27DRN71S4 | 84.78 | 0.25KW | 15.0rpm | 156N.m | 15.5kg | 4100N | 0.85 |
| RF27DRN71S4 | 74.11 | 0.25KW | 18.0rpm | 136N.m | 15.5kg | 4210N | 0.95 |
| RF27DRN71S4 | 69.47 | 0.25KW | 19.0rpm | 128N.m | 15.5kg | 4240N | 1.00 |
| RF27DRN71S4 | 61.30 | 0.25KW | 21.0rpm | 113N.m | 15.5kg | 4180N | 1.15 |
| RF27DRN71S4 | 55.87 | 0.25KW | 23.0rpm | 103N.m | 15.5kg | 4090N | 1.25 |
| RF27DRN71S4 | 48.17 | 0.25KW | 27.0rpm | 88N.m | 15.5kg | 3940N | 1.45 |
| RF27DRN71S4 | 44.90 | 0.25KW | 29.0rpm | 82N.m | 15.5kg | 3870N | 1.60 |
| RF27DRN71S4 | 39.25 | 0.25KW | 33.0rpm | 72N.m | 15.5kg | 3730N | 1.80 |
| RF27DRN71S4 | 36.79 | 0.25KW | 35.0rpm | 68N.m | 15.5kg | 3660N | 1.90 |
| RF27DRN71S4 | 32.47 | 0.25KW | 40.0rpm | 60N.m | 15.5kg | 3540N | 2.20 |
| RF27DRN71S4 | 28.78 | 0.25KW | 45.0rpm | 53N.m | 15.5kg | 3420N | 2.50 |
| RF27DRN71S4 | 24.47 | 0.25KW | 53.0rpm | 45N.m | 15.5kg | 3270N | 2.90 |
| RF27DRN71S4 | 28.37 | 0.25KW | 46.0rpm | 52N.m | 15.5kg | 3410N | 2.50 |
| RF27DRN71S4 | 26.09 | 0.25KW | 50.0rpm | 48N.m | 15.5kg | 3330N | 2.70 |
| RF27DRN71S4 | 22.32 | 0.25KW | 58.0rpm | 41N.m | 15.5kg | 3180N | 3.20 |
| RF27DRN71S4 | 19.35 | 0.25KW | 67.0rpm | 36N.m | 15.5kg | 3050N | 3.70 |
| RF27DRN71S4 | 18.08 | 0.25KW | 72.0rpm | 33N.m | 15.5kg | 2990N | 3.90 |
| RF27DRN71S4 | 15.63 | 0.25KW | 83.0rpm | 29N.m | 15.5kg | 2860N | 4.50 |
| RF27DRN71S4 | 13.28 | 0.25KW | 98.0rpm | 24N.m | 15.5kg | 2730N | 5.30 |
| RF27DRN71S4 | 11.86 | 0.25KW | 110rpm | 22N.m | 15.5kg | 2630N | 5.90 |
| RF27DRN71S4 | 10.13 | 0.25KW | 128rpm | 19N.m | 15.5kg | 2510N | 6.60 |
| RF27DRN71S4 | 9.41 | 0.25KW | 138rpm | 17N.m | 15.5kg | 2440N | 7.00 |
| RF27DRN71S4 | 8.16 | 0.25KW | 159rpm | 15N.m | 15.5kg | 2330N | 7.70 |
| RF27DRN71S4 | 7.63 | 0.25KW | 170rpm | 14N.m | 15.5kg | 2280N | 8.00 |
| RF27DRN71S4 | 6.59 | 0.25KW | 197rpm | 12N.m | 15.5kg | 2180N | 8.80 |
| RF27DRN71S4 | 5.60 | 0.25KW | 232rpm | 10N.m | 15.5kg | 2080N | 9.60 |
| RF27DRN71S4 | 5.00 | 0.25KW | 260rpm | 9.2N.m | 15.5kg | 2000N | 10.0 |
| RF27DRN71S4 | 4.27 | 0.25KW | 304rpm | 7.8N.m | 15.5kg | 1900N | 11.0 |
| RF27DRN71S4 | 4.00 | 0.25KW | 325rpm | 7.3N.m | 15.5kg | 1870N | 12.0 |
| RF27DRN71S4 | 3.37 | 0.25KW | 386rpm | 6.2N.m | 15.5kg | 1770N | 13.0 |
RF27DV71S4齒輪減速機馬達類型：
RX..DR..單級底腳安裝斜齒輪減速電機
RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

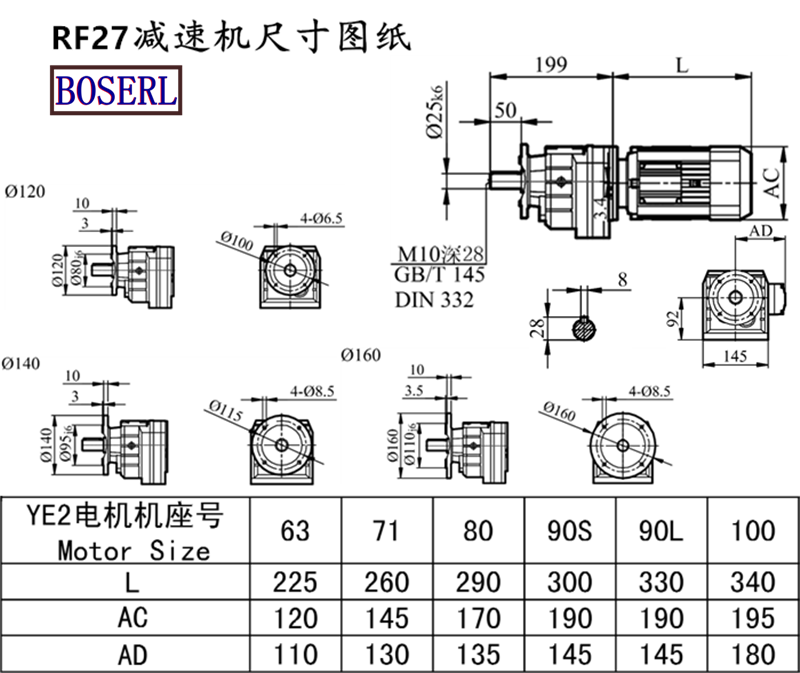

RF27DV71S4齒輪減速機馬達安裝尺寸圖紙
RF27DV71S4齒輪減速機馬達生產工廠展示：看廠請?zhí)崆叭祛A約
立式減速機應用案例展示：
關鍵詞:RF系列減速機與電機_立式減速機_立式齒輪減速電機一套_立式齒輪減速機_RF系列減速機生產廠家_立式減速機生產廠家_立式齒輪減速機生產廠家
RF系列減速機型號：RF17減速機,RF27減速機,RF37減速機,RF47減速機,RF57減速機,RF67減速機,RF77減速機,RF87減速機,RF97減速機,RF107減速機,RF137減速機,RF147減速機,RF167減速機
RF系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 2.2KW立式電機減速器一體機 RF27DV71S4 RF27DRN71S4
- 上一條RF27DM63MS4
- 下一條RF27DM71S4
跟此產品相關的文檔 / Related DownLoad
| 產品文件名稱 | 點擊下載 |
| RF27DV71S4減速機樣本 |
|
| RF27DV71S4減速機三維圖紙 |
|
